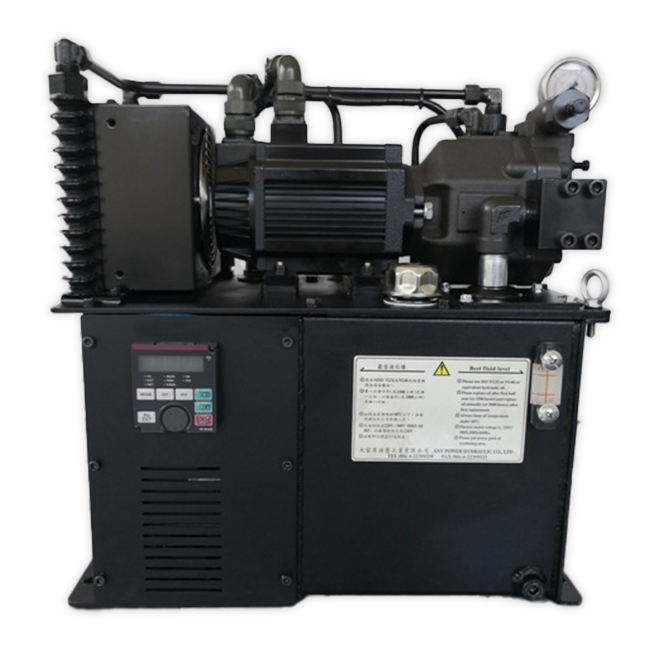

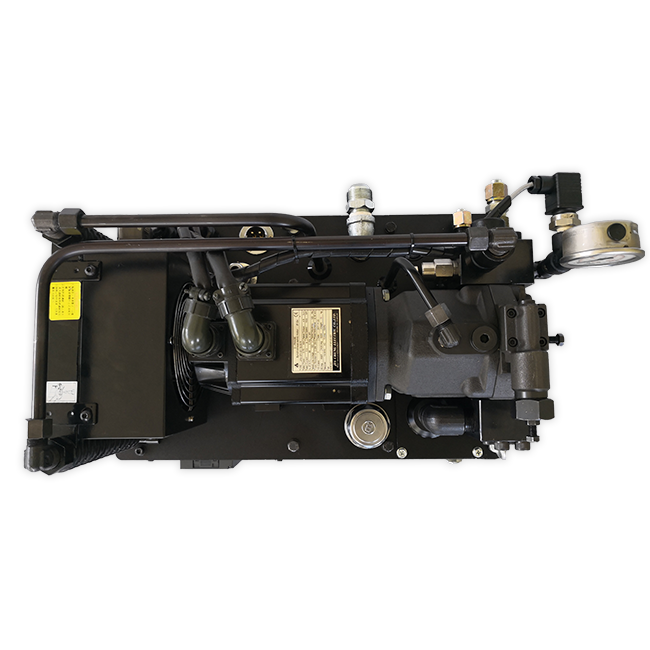

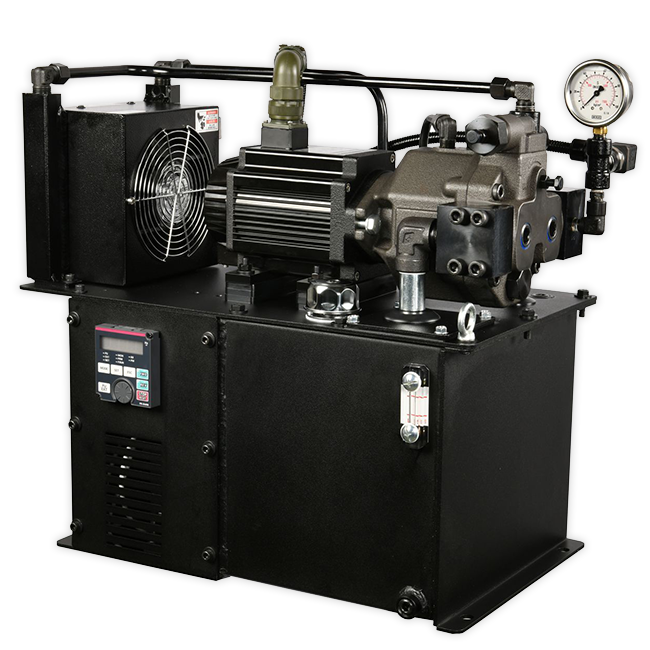

Servo Hydraulic Power unit
- 50HZ and 60 HZ works identically.
- This specially designed pump uses only 0.75 kW to operate.
- 120 rpm is sufficient to maintain pressure during operation.
- Only 0.01 second to raise the speed from 120rmp to 2000rmp.
- More energy-efficient for large machines.
- The temperature rise of this product is low, so using refrigerator to cool the fluid is not needed.
Feature
Low fuel tank
temperature rise
Fuel temperature acceleration 5°C
Low Noise
Under 60db while in standby mode
Response Time
120rpm until 2000rpm only take 0.01sec
Light Vibration
Vibration under 5u while stndby mode
Electricity Consumption
0.16 kw/h

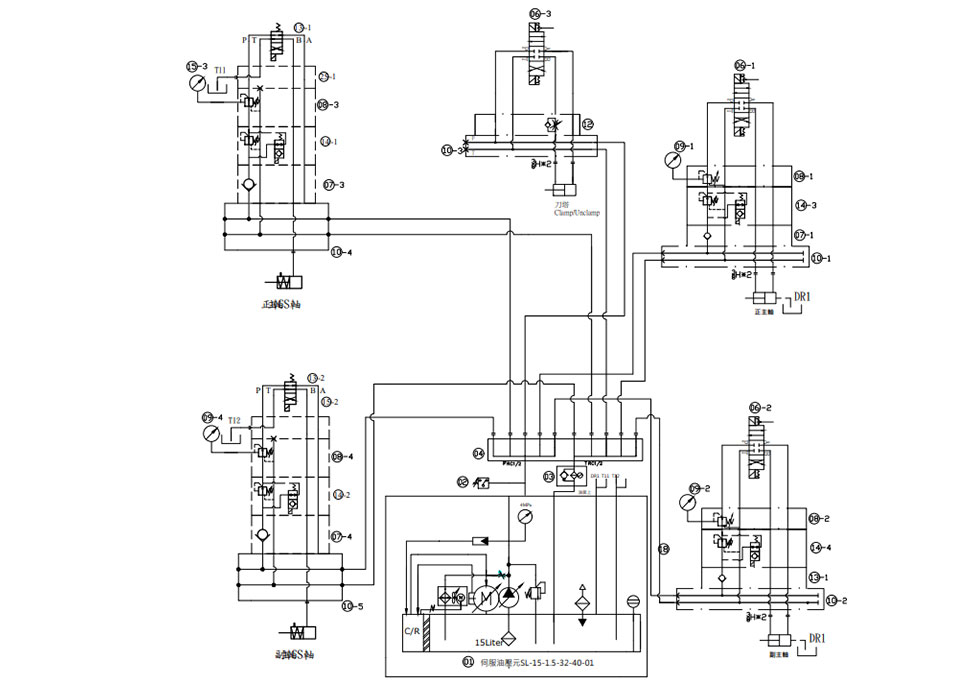

Circuit diagram
Patent
AnyPower servo hydraulic system is patented in Japan and Taiwan
How to order
Compare model
| Item |
 AnyPower Servo Power Unit |
Vane Pump Power Unit |
| Power consumption per hour |
0.14kw-h |
0.7kw-h |
|
Room Temperature |
29℃ | 28℃ |
|
Fluid Temperature |
30℃ | 39℃ |
| Rise of Temperature | 1℃ | 11℃ |
| Motor Temperature | 34℃ | 45℃ |
| Pump Temperature | 31℃ | 45℃ |
| Vibration | 1.3μ | 3.5μ |
| SPL | 53db | 70db |
| Current value R | 0.43A | 2.92A |
| Current value S | 0.20A | 2.55A |
| Current value T | 0.32A | 2.90A |
Servo hydraulic unit saves 79% energy than vane type hydraulic unit
| Item |
Servo Power Unit |
Piston Pump Power Unit |
| Power consumption (holding Pressure) | 0.12 kw-h/h |
0.52 kw-h/h |
|
Motor Format |
0.75kw-10P |
1.5kw-4P |
|
Pump Discharge |
16 cc/rev |
16 cc/rev |
| Setting Pressure | 4.0 MPa | 4.0 MPa |
| Capacity of Tank | 15 Liter | 20 Liter |
| RPM (holding Pressure) | 120 r.p.m. | 1440 r.p.m./ 1720 r.p.m. |
| RPM (Rated) | 2000 r.p.m. | 1440 r.p.m./ 1720 r.p.m. |
| Rise of Temperature | Under 5 ℃ | Under 10 ℃ |
| SPL | Under 60 db | Under 70 db |
| Vibration | 3μ | Under 5μ |
Operation testing-Result
Testing Period
From 1 pm March 1, 2018 To 11am Sep 6, 2018
Total operated 4088 hours
Total power consumption: 665.8 kwh (0.163 kwh per hour)
24 hours operation test (Mon to Sat)
Produce 1 component in 52 seconds.
Average producing 48 component in one hour
takes Servo hydraulic unit 0.16 kwh
and takes piston type hydraulic unit 0.68 kwh.
Conclusion
Servo hydraulic unit saves 76% energy than piston type hydraulic unit
